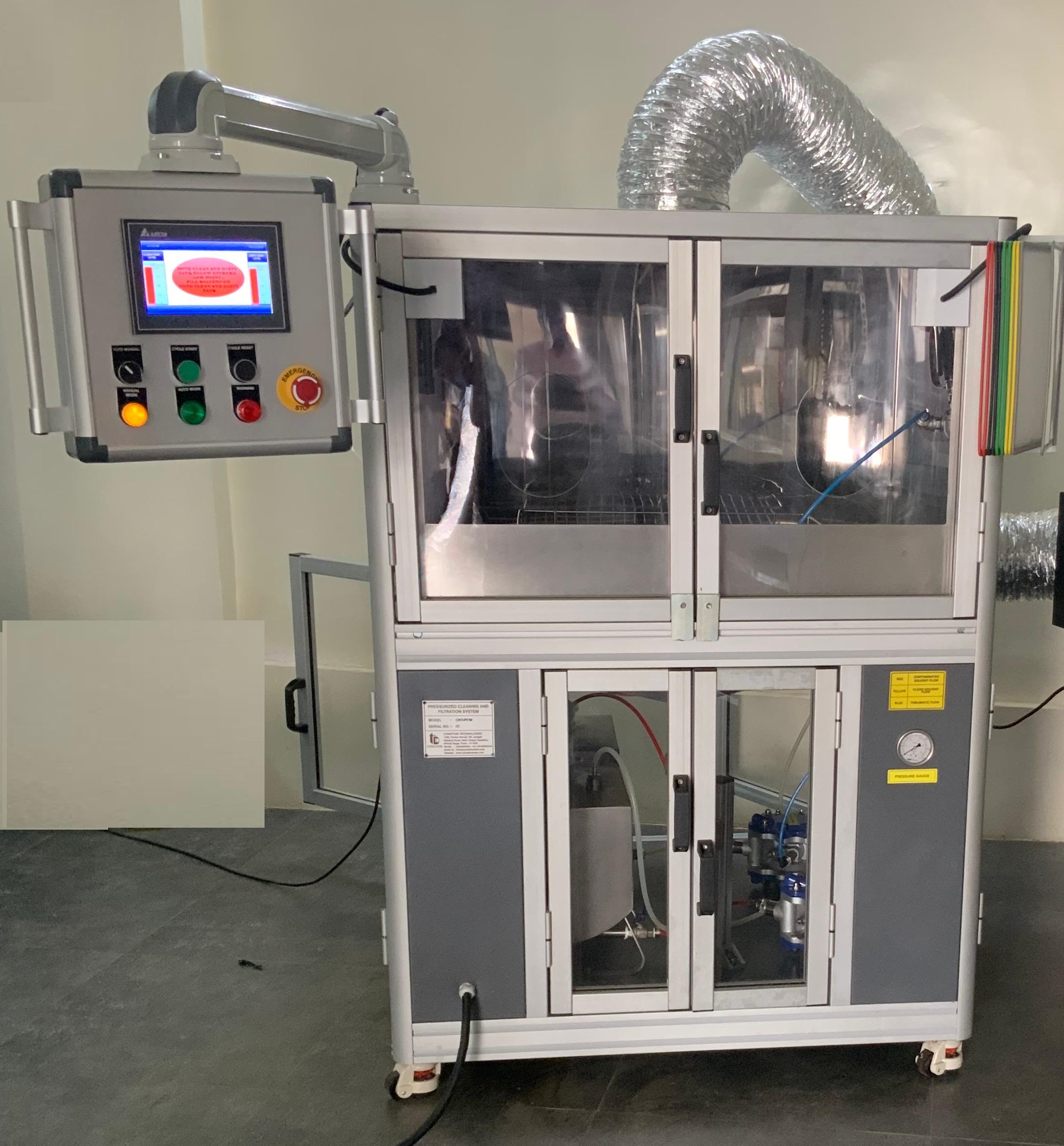

CTC-Series All critical and intricate; small and medium engine components like Fuel injectors, nozzles, springs, tappets, valves, piston rings, pistons, turbocharger wheels, connecting rods, small powertrain components, fasteners etc • Fully Enclosed Cleaning chamber – Made from high grade of S.S., Inside Mirror finish polished (customized size) with manual front loading • Single or cascade filtration (test filtration); vacuum assisted • In line multi-stage filtration for solvent recirculation • Blank value test facility • HMI Touch screen with PLC for feeding different programs, control and operation • Variables - Cleaning nozzle sizes, plugs, sample fixtures, tank sizes • Fume extraction with AHU (optional)

SuXma – SZ Series Conation range of Stereozoom Micrsocpes are with excellent optical systems for analyzing typical macrostructures, surface topography, defects, welding structure analysis and extremely useful tools for failure analysis. Conation offers wide range with Greenough and Parallel optics systems, tailor suited for exact applications. Applications • General Macrostructural observation and analysis • Surace defects, cracks in castings and forgins • Failure Analysis • Weld Structure analysis • Flow lines and macro grains • Electronic components • Contamination/cleanliness • Powder and particles Highlights • Parallel Optics System • Wide magnification range 8X to 50X with zoom ratio 6:1 and addition of objectives • High contrast, sharp images • Versatile in nature • Illumination Options – Brightfield, Darkfield, Polarizer • Options for stands, stages and holders • Possibility to attach motorized XY stage, motorized focusing

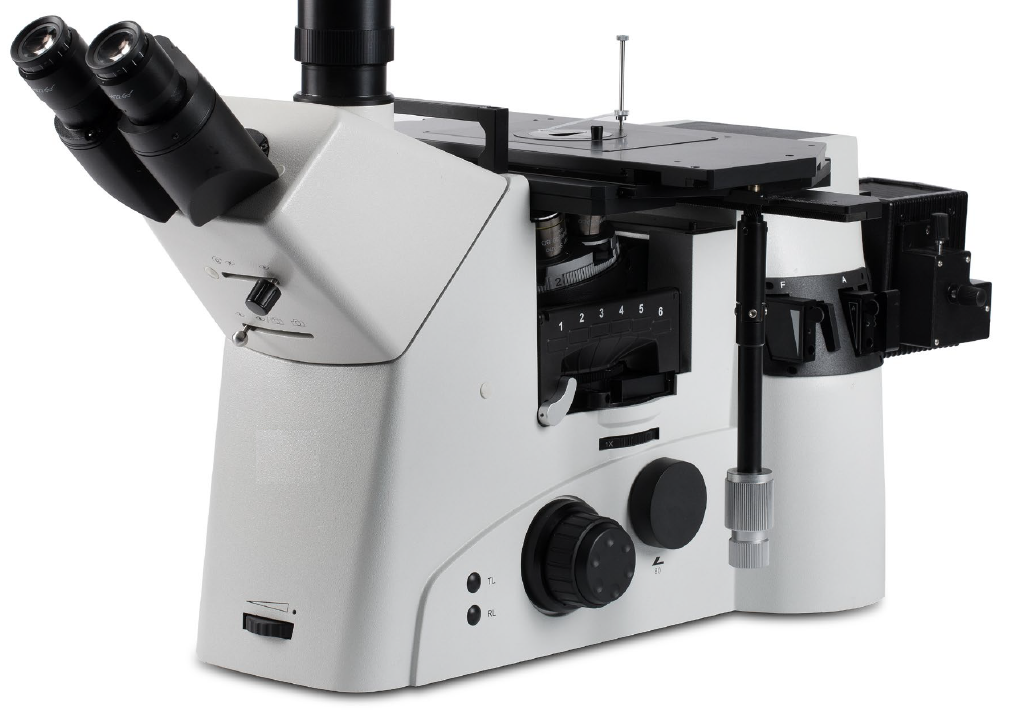

SuXma – Met IV are top of the class material microscopes that incorporated semi-apochromat and Apo-chromat objectives. These objectives have exceptionally high numerical aperture that give best possible resolution in optical microscopy along with superior clarity and sharpness. Applications • Critical microstructures of Heat Treated components, Forgings, tool steel, gears etc. • Inclusion Study with darkfield and DIC • Industrial and research materials such as ceramics, composites, fibres, asbestos, novel materials • Electronic components, PCB, wafers etc • Contamination/cleanliness • Powder and particles Highlights • Semi-apochromat and Apo-chromat objectives with exceptionally high numerical aperture to give best possible resolution, High contrast and sharp images 5X BD Semi-Apo, 10X BD Semi-Apo, 20X BD Semi-Apo, 50X BD APO, 100X BD APO • Observations modes – Brightfield, Darkfield, Polarizer; Option for DIC • Coaxial coarse and fine focus; Minimum division of fine focusing is 1 μm; Moving Range – 35 mm • Eco-function for illumination to automatically shut OFF light if not in working for 30 minutes • Option for motorized nosepiece (turret); motorized stage and focusing; Ergo-tilting head • Sturdy structure with optimized design for extended life span
