cleanliness particle analyzers

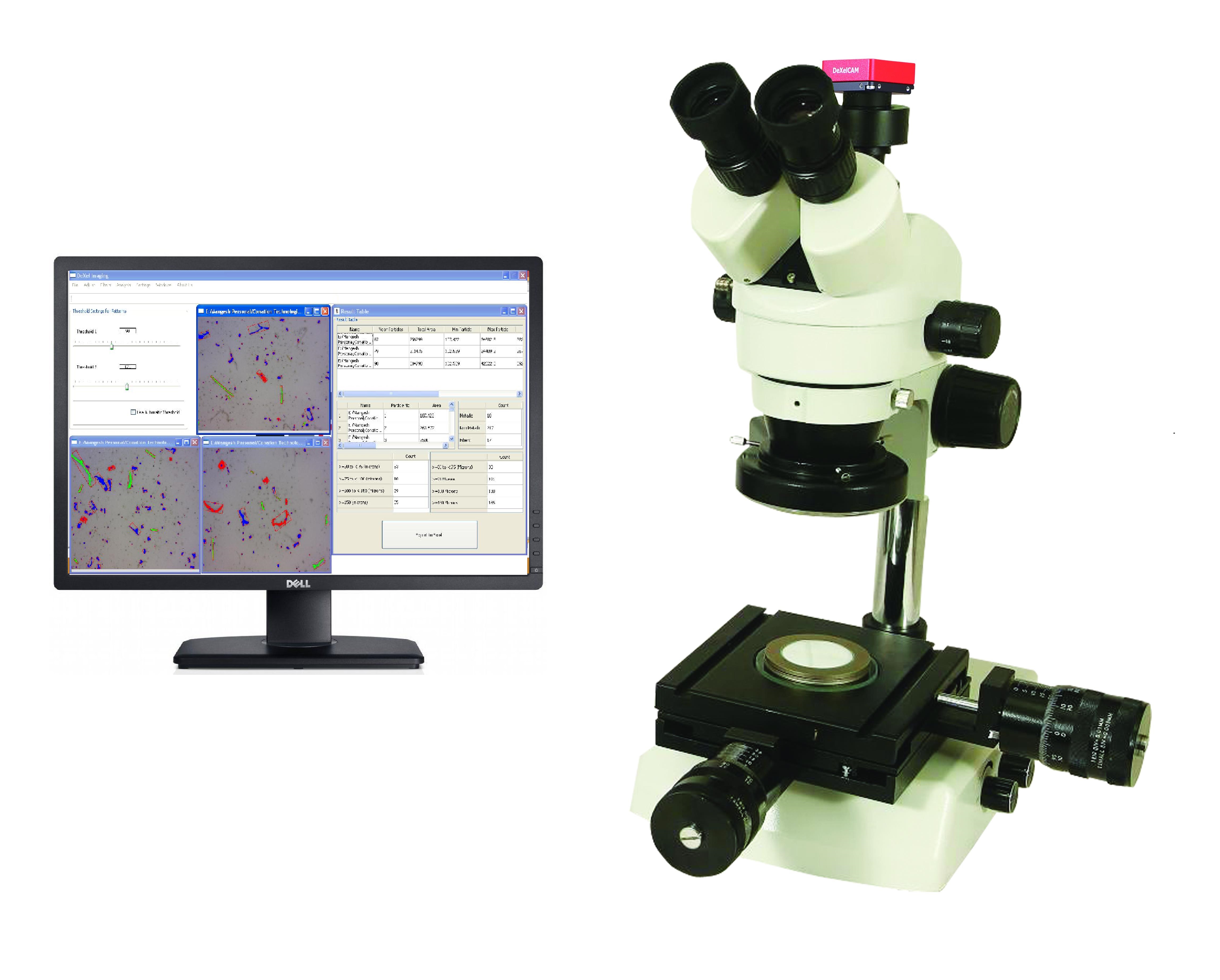

Critical components going into fluid or air circuitry, engine components and some trasmission assemblies are need to free from particle contamination arising from manufacturing and assembly process. Particle contamination beyond limit will invariably affect the performance of the component during it’s life cycle. Conation Technologies, a pioneer in India for cleanliness test equipment manufacturing, offers range of Automatic Particle Analysis Systems which are compliant to most of the international standards such as VDA19.1, ISO16232-2018, ISO 4406 & 4407, ASTM F312 etc When the cleanliness specifications need only largest particles’ identification and their size measurements and does not require detailed size classification; a semi-automatic system is ideal solution. Applications • Engine, Transmission, Braking components • Fuel and hydraulic line components • Largest few particles data Features/Highlights Stereozoom microscope • SuXma – SZ I; Make Conation • Magnification – 7X to 45X • Illumination - White LED ring light illumination Manual X-Y scanning stage, Manual focusing • XY movement of 25 mm in each direction • Specially designed sample holder for 47mm dia filter paper Camera – USB, Color, Made in Germany • 5 MP, High resolution • 2.2X2.2 square pixel DeXel-Filtrate I Imaging software • Specially designed Image analyzer to manually capture set of images and batch run analysis of all captured images in at one go • Separation of particles from captured images in Metallic, Non-metallic, fiber and Distribution of them as per their sizes • Reporting of largest particles from analyzed data • Customized Report generation

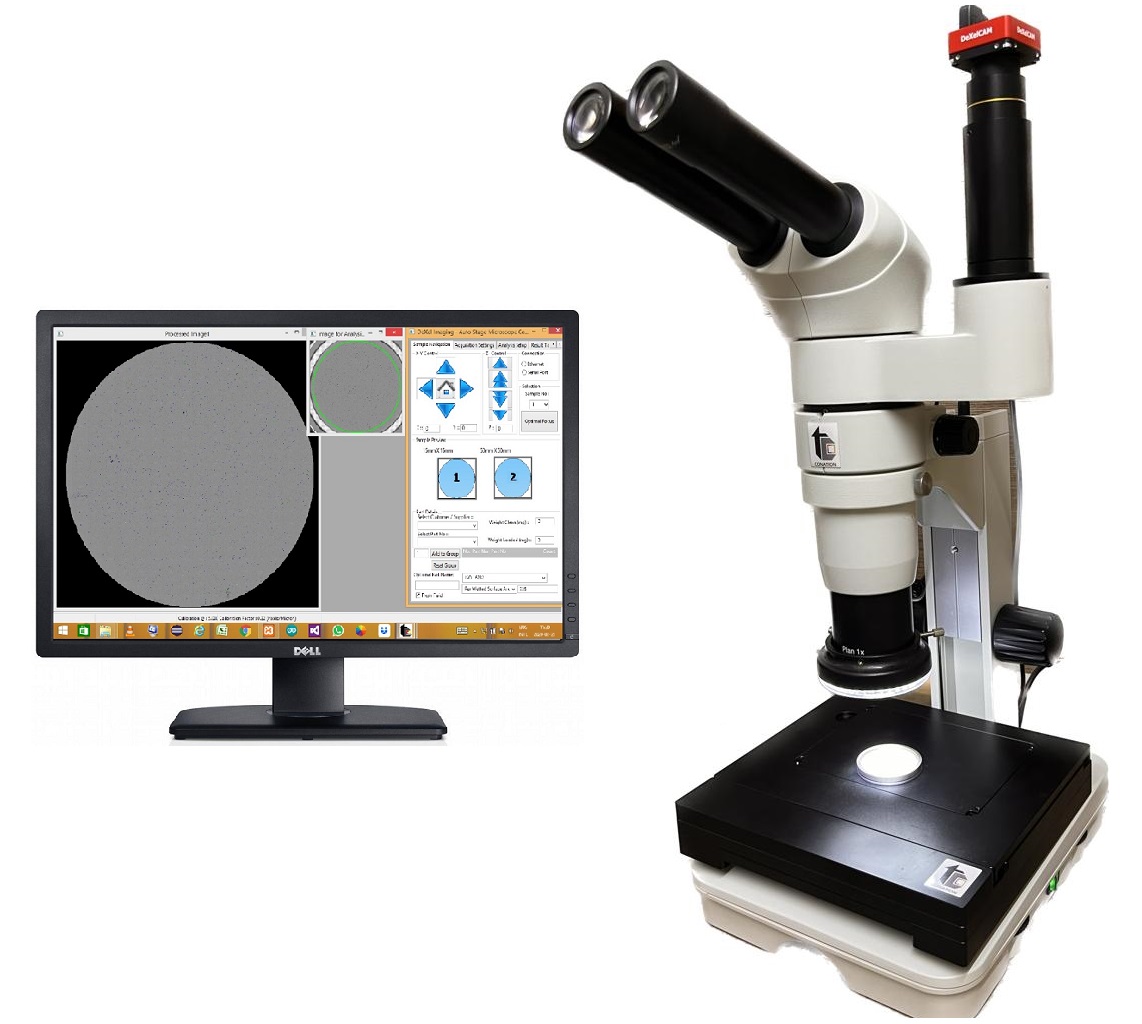

Critical components going into fluid or air circuitry, engine components and some trasmission assemblies are need to free from particle contamination arising from manufacturing and assembly process. Particle contamination beyond limit will invariably affect the performance of the component during it’s life cycle. Conation Technologies, a pioneer in India for cleanliness test equipment manufacturing, offers range of Automatic Particle Analysis Systems. Systems are compliant to most of the international standards such as VDA19.1, ISO16232-2018, ISO 4406 & 4407, ASTM F312 etc Model: Filtrate II Main Features Stereozoom microscope • SuXma – SZ 6P • Parallel Optics System • Magnification – 8X to 50X Motorized X-Y scanning stage, Manual focusing (Z drive) • Ball screw and stepper motor driven scanning stage, Programmable • 10 micron positioning accuracy • Manual override Camera – USB, Color, Made in Germany • 5 MP, High resolution • 2.2X2.2 square pixel DeXel-Filtrate Imaging software • Specially designed Image analyzer to stitch all captured images to generate a single image of entire filter paper; and to automatically analyze this single image for determination of particulate contamination as per various international standards • Separation of particles as Metallic, Non-metallic, fiber and Distribution of them as per their sizes • Customized Report generation / As per standard Optional Features – Motorized Z (focusing), Joystick, Advanced reporting tool & analytics software etc

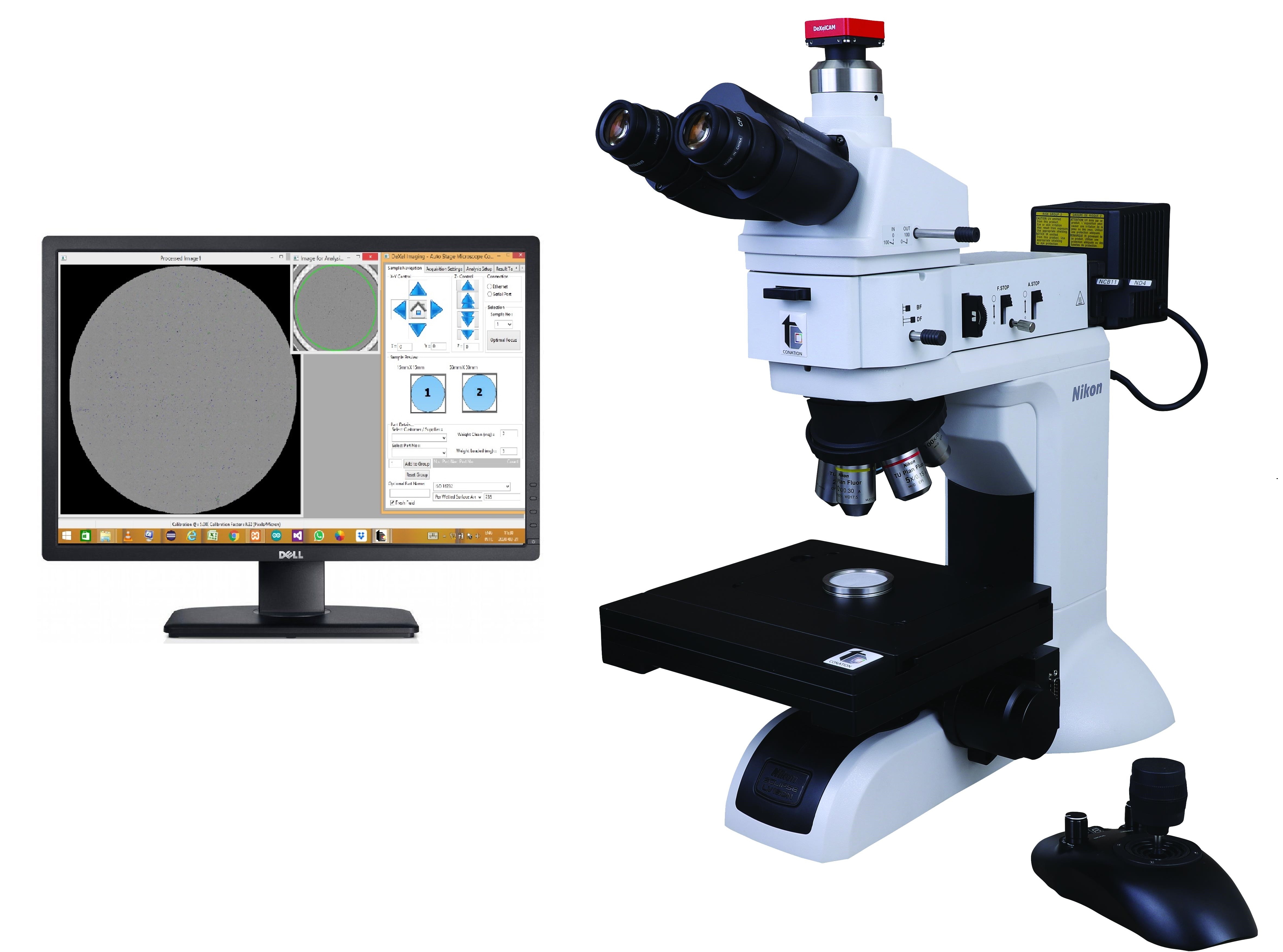

Critical components going into fluid or air circuitry, engine components and some trasmission assemblies are need to free from particle contamination arising from manufacturing and assembly process. Particle contamination beyond limit will invariably affect the performance of the component during it’s life cycle. Conation Technologies, a pioneer in India for cleanliness test equipment manufacturing, offers range of Automatic Particle Analysis Systems. Systems are compliant to most of the international standards such as VDA19.1, ISO16232-2018, ISO 4406 & 4407, ASTM F312 etc Applications • Engine, Transmission, Braking components • Fuel and hydraulic line components • Electronic components • Fluids – Fuel, oils, coolants etc • Cleanliness Analysis as per VDA19.1, ISO16232-2018, ISO 4406 & 4407, ASTM F312 Features/Highlights • Particle size measurement right from 1 micron • With Nikon’s unparalleled optics, each particle is captured with high resolution and measured to the highest accuracy. • Quick scanning and faster processing to deliver the report in short time • High resolution German made camera • High precision ultra compact motorized stage with XYZ automation; programmable • State of the art, Unified and simplified user interface software; user friendly navigation • Intelligent Metallic Particle separation • Advanced Fiber Identification with Elongated Length feature • Adaptability for range of filters/membranes such as cellulose, Nylon, PTFE etc; • Options for 25 mm and 90 mm scanning also available • Specially designed Database and Reporting software Specifications Nikon Microscope; Model: LV150N • Modularized LV150 series Microscope with CFI60 Optical System • CFI TU Plan FLUOR Epi 5X, 10X and 20X with high NA objectives • Trinocular eyepiece tube ESD • CFI 10X with diopter adjustment (F.O.V. 22mm) • LED illumination with internal power source and intensity control, field diaphragm and aperture stop, can accept filters • Sextuple Nosepiece • Polarizer and Analyzer • Expandable for Darkfield and DIC observation modes  World Class Nikon optics with Superior Optical performance and great resolution to visualize and capture crisp and clear images  Best in class with Higher NA  Highly corrected for chromatic aberration Ultra compact Motorized stage with controller and Joystick • High Precision screw and stepper motor driven XY stage • Travel range - 80X60 mm • Positioning accuracy - 10 micron • Motorized Focusing (Z Drive) with adapter • Controller for motorized X, Y and Z operation • Joystick to operate motorized stage • Specially designed sample holder for 47mm dia filter paper High resolution camera, Made in Germany • USB2.0, CMOS, Color • 5 MP, High resolution • 2.2X2.2 square pixel • Rolling/Global shutter Imaging Software  DeXel-Filtrate Imaging software • Unified user interface software to harmonize the operation across all automatic models • Specially designed Image analyzer to analyze and measure all particles on filter paper as per any applicable standard such as ISO16232-18, VDA19.1, ISO4406 etc • Stitch all captured images to generate a single image of entire filter paper; • Automatically analyze this single image for determination of particulate contamination as per desired standard • Separation of particles as Metallic, Non-metallic, and fibres • Distribution all particles into user/standard defined size classes • Estimation of Filter Occupancy (Patch Saturation) • Real time Auto-Focusing • Intelligent Metallic Particle separation • Advanced Fiber Identification with Elongated Length feature  Stage Operating Software • XYZ movement control of stage from PC

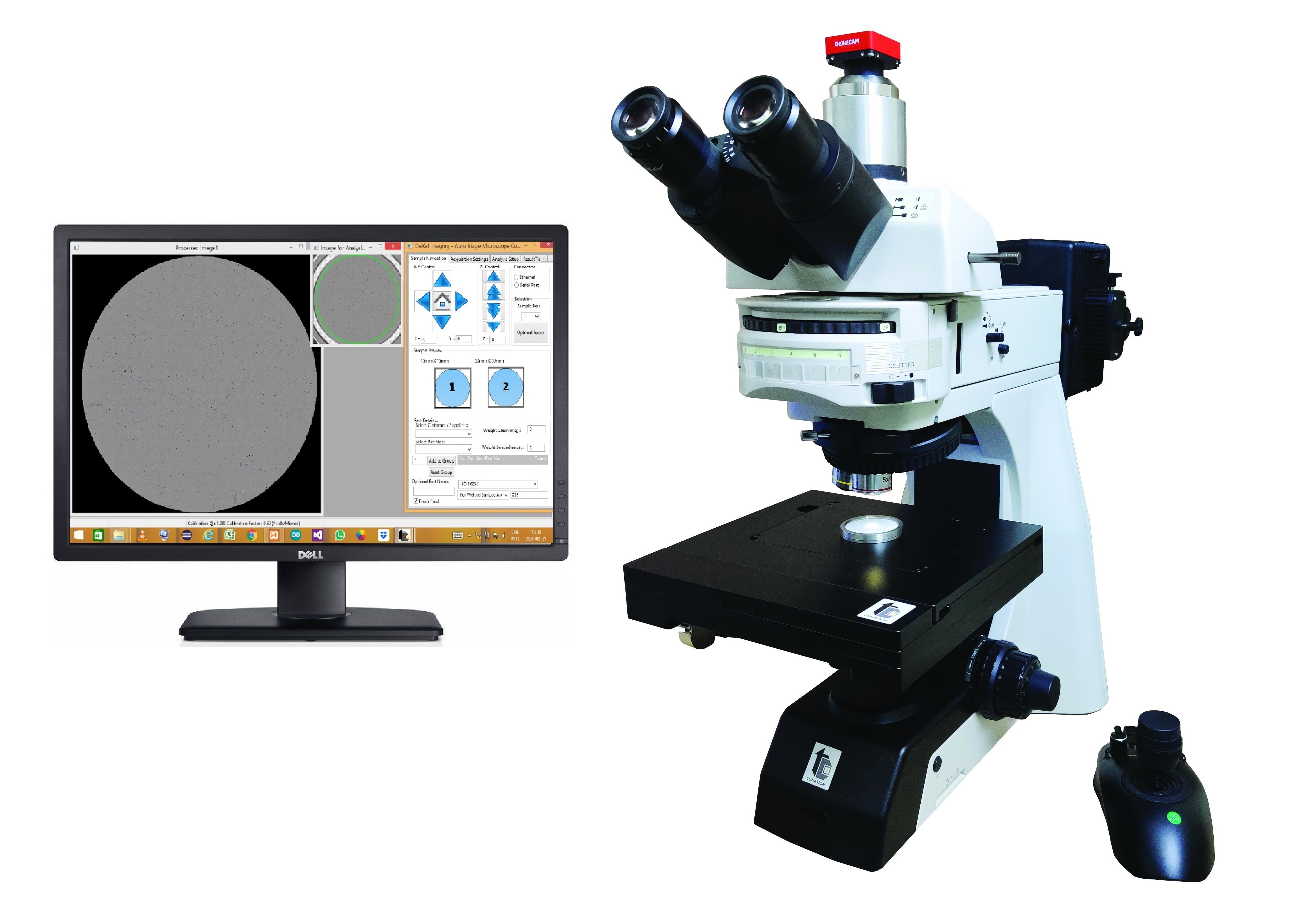

Critical components going into fluid or air circuitry, engine components and some trasmission assemblies are need to free from particle contamination arising from manufacturing and assembly process. Particle contamination beyond limit will invariably affect the performance of the component during it’s life cycle. Conation Technologies, a pioneer in India for cleanliness test equipment manufacturing, offers range of Automatic Particle Analysis Systems. Systems are compliant to most of the international standards such as VDA19.1, ISO16232-2018, ISO 4406 & 4407, ASTM F312 etc Applications • Engine, Transmission, Braking components • Fuel and hydraulic line components • Electronic components • Fluids – Fuel, oils, coolants etc • Cleanliness Analysis as per VDA19.1, ISO16232-2018, ISO 4406 & 4407, ASTM F312 etc Features/Highlights Optical system - UIS Infinity Advanced Infinity AObjectives - Semi-Apochromat 5X / NA 0.15, 10X / NA 0.30, 20X / NA 0.40 Binocular head - Inclined 30°; In-built C Mount tube; Optical path selector (100:0 / 80:20 / 0:100) Eyepiece - WF 10X/22 Nosepiece - Sextuple with DIC slot Illumination - Halogen Bulb 24/100 W / LED Integrated field diaphragm, aperture diaphragm, Polarizer and Analyzer Sample holder for 47mm dia filter paper Motorized XYZ Stage - Ultra-compact; 120 X 100 mm; XY movement 80X60 mm: XY movement accuracy - 5 micron Focusing – Motorized – 35 mm; Z movement accuracy - 1 micron Controller - For XYZ motorized operation and Joystick • Particle size measurement right from 1 micron • Quick scanning and faster processing to deliver the report in short time • High resolution optical system • High resolution German made camera • High precision motorized stage with XYZ automation; programmable • State of the art, Unified and simplified user interface software; user friendly navigation • Intelligent Metallic Particle separation • Advanced Fiber Identification with Elongated Length feature • Adaptability for range of filters/membranes such as cellulose, Nylon, PTFE etc; • Options for 25 mm and 90 mm scanning also available • Specially designed Database and Reporting software  DeXel-Filtrate Imaging software • Unified user interface software to harmonize the operation across all automatic models • Specially designed Image analyzer to analyze and measure all particles on filter paper as per any applicable standard such as ISO16232-18, VDA19.1, ISO4406 etc • Stitch all captured images to generate a single image of entire filter paper; • Automatically analyze this single image for determination of particulate contamination as per desired standard • Separation of particles as Metallic, Non-metallic, and fibres • Distribution all particles into user/standard defined size classes • Estimation of Filter Occupancy (Patch Saturation) • Real time Auto-Focusing • Intelligent Metallic Particle separation • Advanced Fiber Identification with Elongated Length feature  Stage Operating Software • XYZ movement control of stage from PC
